Description

How the Machine Works

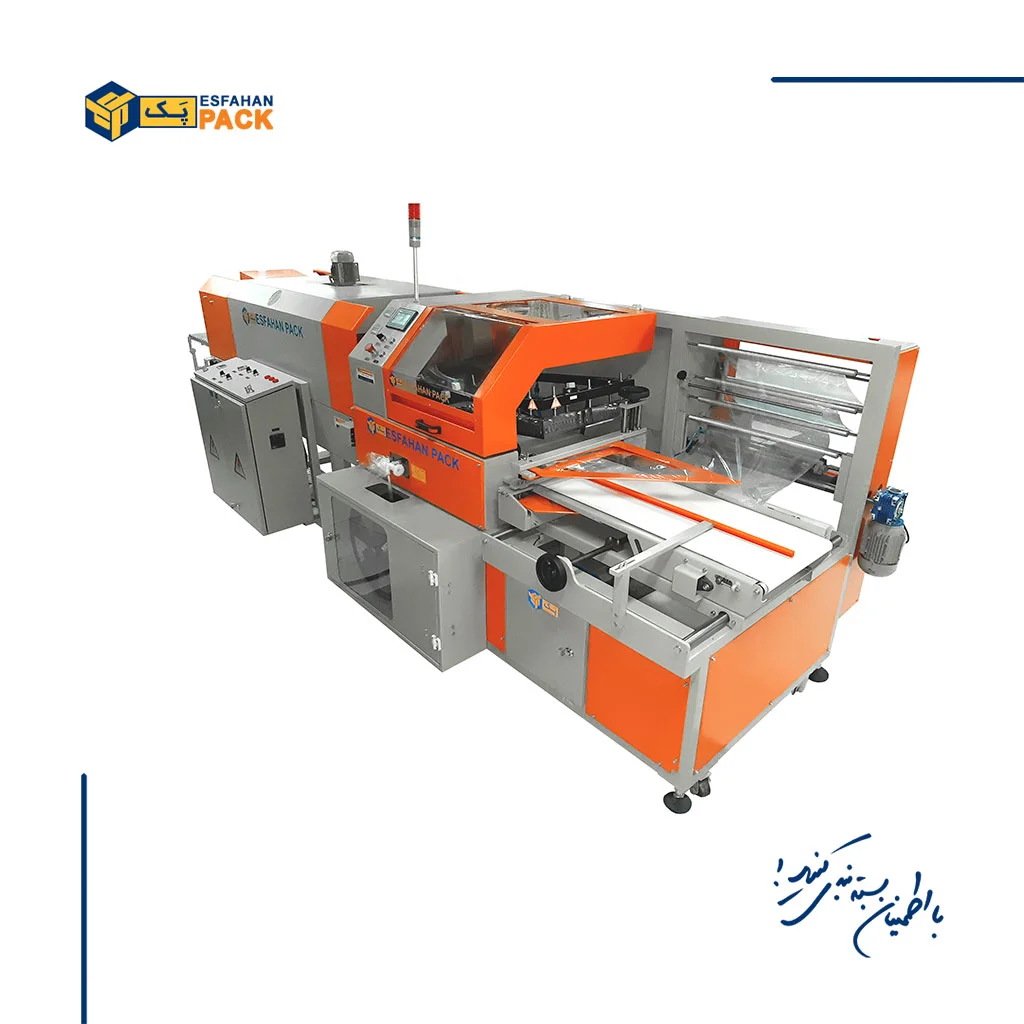

The CS-26ALE performs all packaging steps automatically:

1. A dual-layer shrink film is unwound from the bottom-mounted film dispenser.

2. As the product enters the conveyor, the film layers open and wrap around the item.

3. The pneumatic L-shaped sealing and cutting blade precisely seals the film around the product.

4. The sealed pack immediately passes through the air-cooling section, stabilizing the film.

5. Finally, the product moves into the heat-shrink tunnel, producing a tight, uniform, and durable package.

This ensures high throughput, minimal operator intervention, and perfect results every cycle.

Main Features & System Components

• PVC Conveyor System

Durable powered PVC conveyors guarantee smooth and stable transfer of products, reducing cycle time and increasing line efficiency.

• Pneumatic L-Sealing Unit

The high-precision sealing blade ensures long life, clean cutting, and strong, uniform seals suitable for high-volume operation.

• Air-Cooling Frame

A directed airflow system cools and stabilizes the package immediately after sealing, preventing deformation before shrinkage.

• Automatic Film Feeding & Tension Control

Film-pulling rollers maintain even tension and alignment, ensuring high-quality sealing and flawless wrapping.

• Bottom-Mounted Film Unwinding Mechanism

Allows quick and safe film-roll replacement with minimal downtime — ideal for continuous production.

• Automatic Product Size Adjustment

The infeed opening automatically adjusts for different product widths and heights, enabling seamless changeovers.

• Film Perforation System

Micro-perforates the film to release trapped air, resulting in perfectly tight, wrinkle-free shrink packs.

• Adjustable Sealing Conveyor

Customizable sealing conveyor length allows optimization for small or medium-sized products.

• Spring-Loaded Aluminum Roller Table

Located at the output section for collecting shrink-wrapped products without jams or scratches.

• Advanced PLC + HMI Control

A user-friendly touchscreen interface provides full control over temperature, sealing time, conveyor speed, and film handling parameters.
Operators can easily monitor, optimize, and store production settings.

Performance & Technology

The CS-26ALE combines:

• High-speed automation

• Stable film handling

• Precision sealing

• Low-maintenance industrial components

This makes it ideal for continuous, high-volume shrink wrapping with consistent quality and reduced operating cost.

Industries & Applications

Nougat, Candy & Confectionery

Small boxes, bars, and gift packs for tamper-proof retail packaging.

Cookies, Cakes & Pastries

Tray packs, multi-packs, and transport-safe shrink bundles.

Electronic Components

Dust-proof and tamper-resistant packaging for accessories and spare parts.

Hygiene & Cosmetic Products

Attractive shrink wrapping for kits, bottles, and beauty sets.

Pharmaceutical Products

Sealed packs for small cartons, medical kits, and warehouse-ready bundling.

Canned Food & Beverages

Shrink-wrapped trays and multi-can packages for transport stability.
